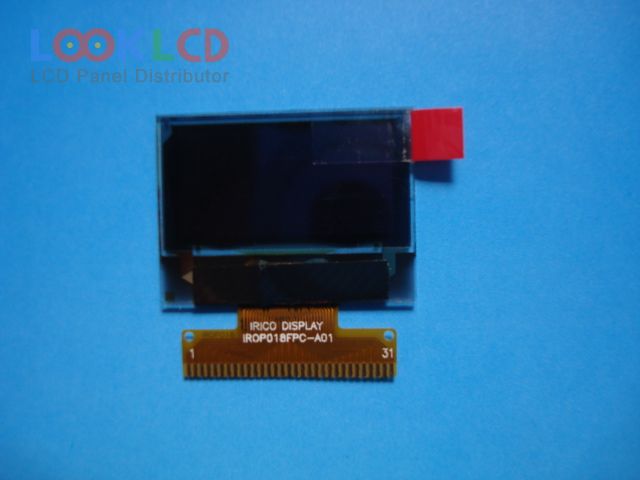

| Numero parte | IROP018-010-0128064-W |
| Marca | Other |
| Misurare | 0.96 |
| Applicazione | MPH |
| Risoluzione | 128×64 |
| Composizione | OLED |
| Luminosità | 100 |
| CR | 2000:1 |
| Colori | Mono(White) |
| Retroilluminazione | self |
| Interfaccia | CPU/SPI/I²C |
| marchio del pannello | IRICO |
| modello a pannello | IROP018-010-0128064-W |
| tipo di pannello | PM-OLED , OLED |
| dimensione del pannello | 0.96 inch |
| risoluzione | 128×64 |
| area attiva | 21.74×10.86 mm |
| contorno | 26.4×19.7×1.36 mm |
| superficie | Antiglare |
| luminosità | 100 cd/m² (Typ.) |
| Rapporto di contrasto | 2000 : 1 (Min.) |
| visualizzare i colori | Mono(White) (1-bit) |
| angolo di visione | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| autista ic | COG Built-in SEPS200A |
| interfaccia di segnale | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| tensione di ingresso | 2.8/12.0V (Typ.)(VDD/VCC) |
| applicazione | MPH |
