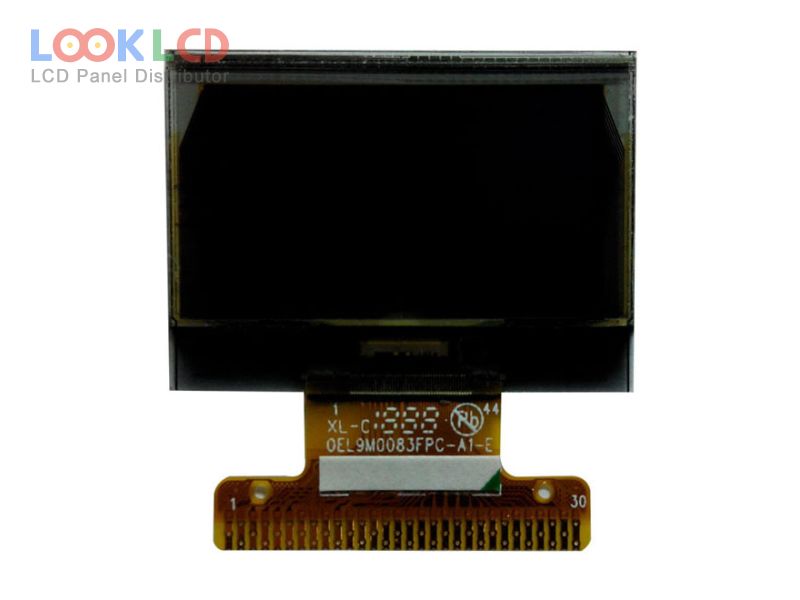

| Numero parte | OEL9M0083-R-E |
| Marca | Other |
| Misurare | 0.96 |
| Applicazione | |
| Risoluzione | 128×64 |
| Composizione | OLED |
| Luminosità | |
| CR | 10000:1 |
| Colori | Mono(Red) |
| Retroilluminazione | self |
| Interfaccia | CPU/SPI/I²C |
| marchio del pannello | TRULY |
| modello a pannello | OEL9M0083-R-E |
| tipo di pannello | PM-OLED , OLED |
| dimensione del pannello | 0.96 inch |
| risoluzione | 128×64 |
| area attiva | 21.74×11.175 mm |
| contorno | 26.7×19.26×1.65 mm |
| superficie | |
| luminosità | |
| Rapporto di contrasto | 10000 : 1 (Min.) |
| visualizzare i colori | Mono(Red) (1-bit) |
| angolo di visione | 80/80/80/80 (Min.)(L/R/U/D) |
| frequenza | 100Hz |
| autista ic | COG Built-in SH1106G |
| interfaccia di segnale | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
